TMD02 Series - 250 lbs

TMD02 Series Industrial Linear Actuator

The TMD02 Series 250 lb. capacity Heavy Duty Linear Actuator can be used for various Industrial applications across different industries. They are commonly found in manufacturing, renewable energy, and industrial automation, for tasks like opening and closing doors, lifting tables, and adjusting solar panels.

Free Application Analysis

Capacity (lbs): 250

Stroke Length (in): 2, 4, 6, 8, 10, 12

View Specifications

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

Compact Design
Ideal for applications with light loads and limited space
Quiet Operation
Belt drive for quiet operation
Corrosion Resistant
Aluminum housing and outer tube, stainless steel translating tube
Easy Integration
Terminal strip for easy limit switch integration
No Restraining Torque
Keyed translating tube eliminates the need for restraining torque
Permanent Magnet Motors
No thermal overload protection

Specifications

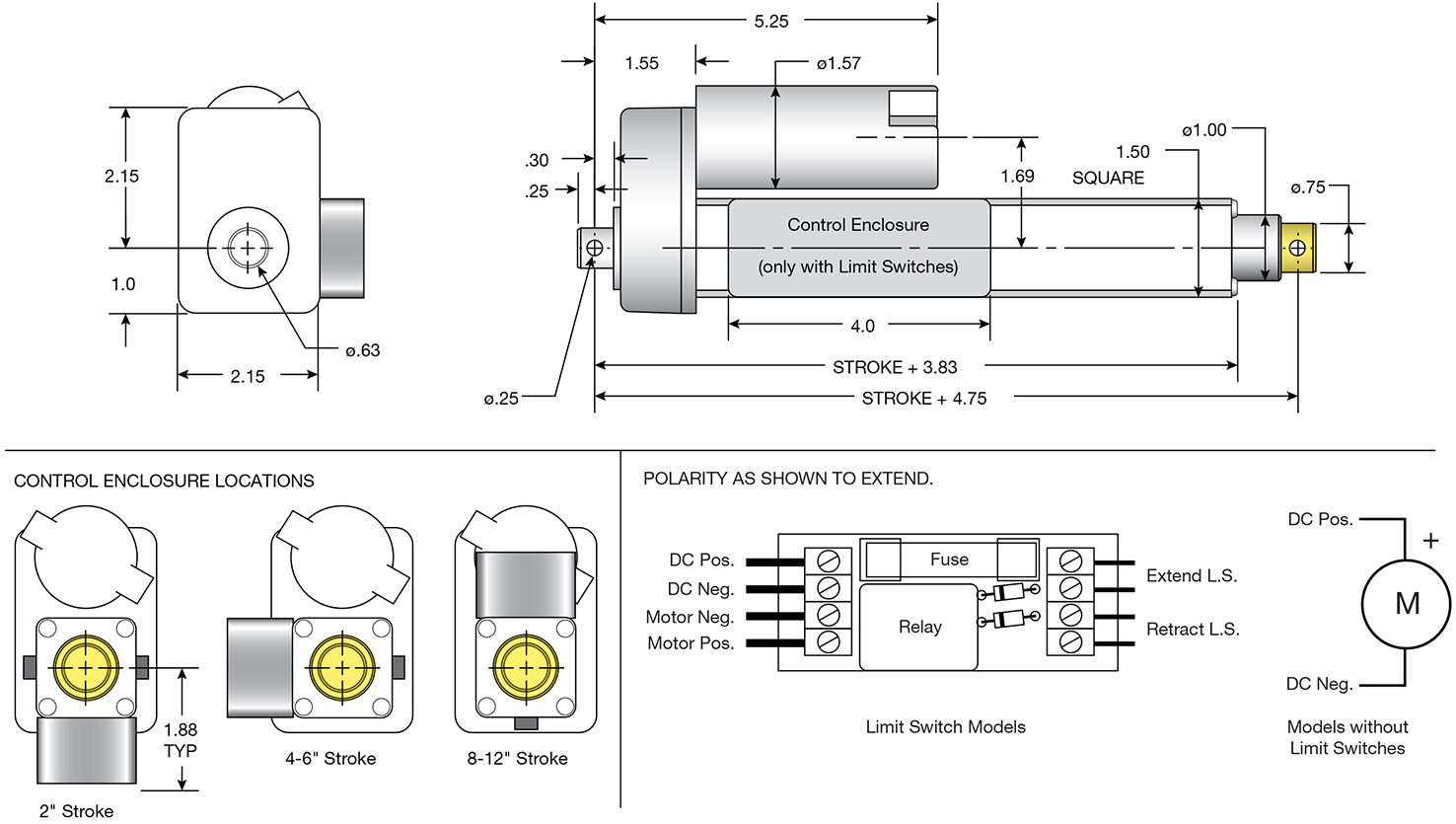

TMD02 Series Dimensions and Wiring Diagram

TMD02 Series Dimensional Drawing

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide [Brochure] Duff-Norton Product Capabilities Brochure

Manuals & Supplements

[O&M Manual] TDM02 O&M Manual [Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] TMD02 Product Sheet [Product Sheet] TMD02 Specs and Part Numbers

Drawings & Diagrams

[Dimension Input Drawing] TMD02 Dimensional Drawing
