TAC Series - 500 lbs

TAC Series Industrial Linear Actuator

VOLTAGE: 12 or 24 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 4 to 18 in (76 to 457 mm)
SPEED: 0.45 in/s (11 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 protection standardTUBE RESTRAINING TORQUE: 40 in-lbf (4.5 Nm)

Free Application Analysis

Catalogs

Product Sheet

O&M Manual

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

FEATURES and BENEFITS:
Heavy duty design for long life in tough applications
Aluminum housing and outer tube
Stainless steel translating tube
Double clevis mounting
Load limiting ball detent clutch
Automatic reset thermal overload motor protection
OPTIONS:
Bellows boot

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[O&M Manual] TAC Series OandM Manual [Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] TAC Product Sheet [Product Sheet] TAC Specs and Part Numbers

Drawings & Diagrams

[Dimension Drawing] TAC Dimensional Drawing

Product Diagrams

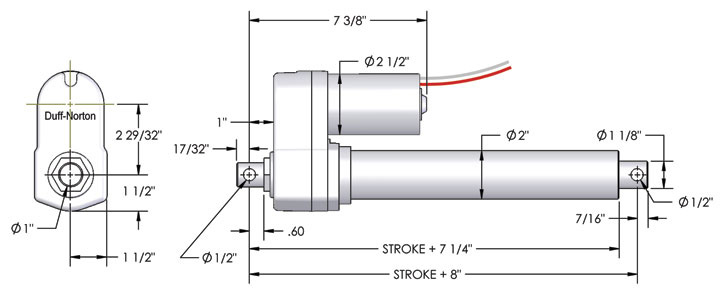

TAC Series 500 lb.Dimensions

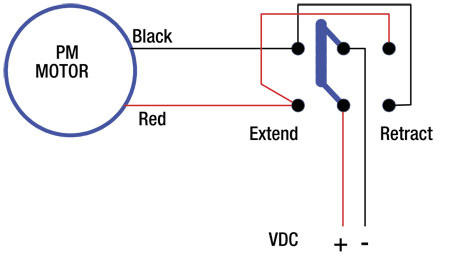

TAC Series 500 lb. Wiring Diagram
