SPB Series - 500 lbs

SPB Series Industrial Linear Actuator

VOLTAGE: 12 or 24 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 4 to 28 in (102 to 457 mm)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 protection standard (IP52 optional)
TUBE RESTRAINING TORQUE: 60 in-lbf (6.7 Nm)

Free Application Analysis

Catalogs

Product Sheet

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

FEATURES and BENEFITS:
Heavy duty design for long life in tough applications
Patented spring brake
Aluminum housing and outer tube
Steel translating tube - zinc chromate plated
Double clevis mounting
Load limiting friction disc clutch
Automatic reset thermal overload motor protection
OPTIONS:
Capacitor
Weather resistant sealant - IP52
Bellows boot
Threaded end

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] SPB Product Sheet [Product Sheet] SPB Specs and Part Numbers

Drawings & Diagrams

[Dimension Drawing] SPB Dimensional Drawing

Product Diagrams

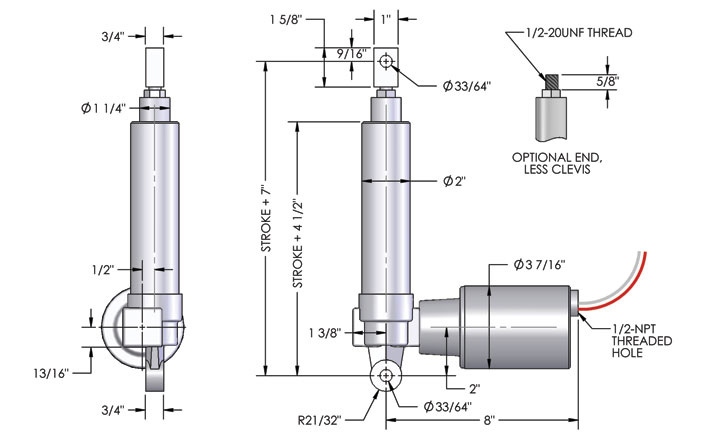

SPB Series 500 lb. Dimensions

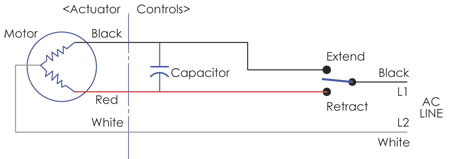

SPB Series 500 lb. Wiring Diagram

SPB Series Wiring Diagram
