LS Series - 450 to 675 lbs

LS Series Industrial Linear Actuator

VOLTAGE: 12 VDC or 115 VAC
STANDARD STROKES: 4 to 24 in. (101 to 609 mm)
SPEED: 0.15 to 0.26 in/s (3.8 to 6.6 mm/s)

Free Application Analysis

Catalogs

Product Sheet

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

FEATURES and BENEFITS:
Loading: tension (pull) or compression (push) at rated load
AC motor thermal protection to prevent over heating
Internal limit switches - adjustable
Onboard capacitor for AC models
Die cast aluminum housing for strength
Steel translating tube and outer tube
Self locking acme screw to prevent back driving
CE compliant and UL recognized
Custom models available

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] LS Product Sheet [Product Sheet] LS Specs & Part Numbers

Drawings & Diagrams

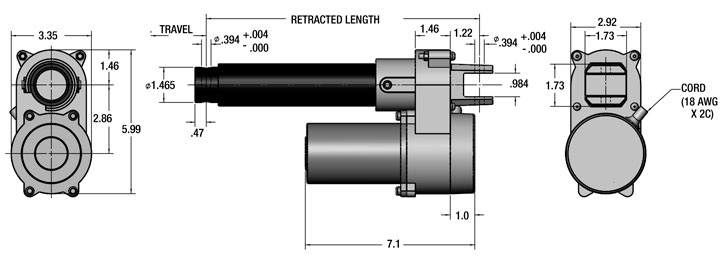

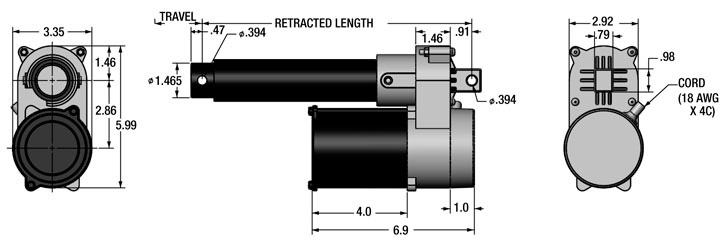

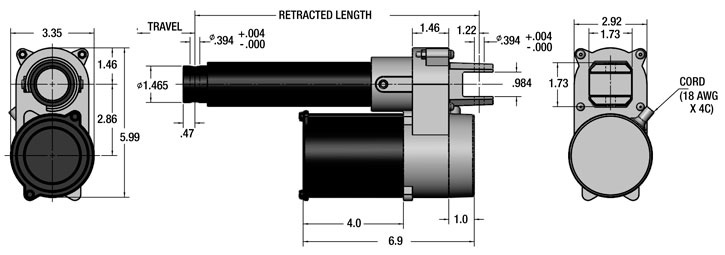

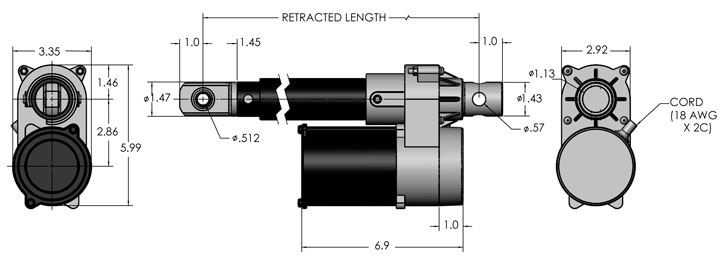

[Dimension Drawing] LS 48 Dimensional Drawing - 660 lb [Dimension Drawing] LS 35 AC Dimensional Drawing - 675 lb [Dimension Input Drawing] LS 35 DC Dimensional Drawing - 675 lb [Dimension Drawing] LS 25 Dimensional Drawing - 450 lb
