HSPB Series 250 lbs
The HSPB Series 250 lbs. features a mechanical braking system for precise stopping and load holding, as well as internal, adjustable limit switches to define the actuator's travel range. This actuator is designed for demanding applications requiring reliability, accuracy, and robust performance.
Standard Configurations
Capacity (lbs):
250
Stroke Length (in):
3, 6, 12, 18
Documents
Need Assistance?
Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.
Specifications
Specifications
HSPB Series Product Specifications |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Rated Loads | Stroke Length | Retracted Length | Voltage | Current Draw* | Speed* | Duty Cycle* | |||
| # | (lbs) N | in | mm | in | mm | VAC | Amp | in/s | mm/s | % |
| SPB3405-3 | (250) 1112 | 3 | 76 | 10 | 254 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-6 | (250) 1112 | 6 | 152 | 13 | 330 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-12 | (250) 1112 | 12 | 304 | 19 | 482 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB3405-18 | (250) 1112 | 18 | 457 | 25 | 635 | 115 | 1.9 | 0.7 | 18 | 23% |
| SPB4405-3 | (250) 1112 | 3 | 76 | 11.25 | 254 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-6 | (250) 1112 | 6 | 152 | 14.25 | 330 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-12 | (250) 1112 | 12 | 304 | 20.25 | 482 | 115 | 1 | 0.6 | 15 | 21% |
| SPB4405-18 | (250) 1112 | 18 | 457 | 26.25 | 635 | 115 | 1 | 0.6 | 15 | 21% |
| HSPB3405-3 | (250) 1112 | 3 | 76 | 11.25 | 254 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-6 | (250) 1112 | 6 | 152 | 14.25 | 330 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-12 | (250) 1112 | 12 | 304 | 20.25 | 482 | 115 | 5.1 | 1.4 | 36 | 11% |
| HSPB3405-18 | (250) 1112 | 18 | 457 | 26.25 | 635 | 115 | 5.1 | 1.4 | 36 | 11% |
|

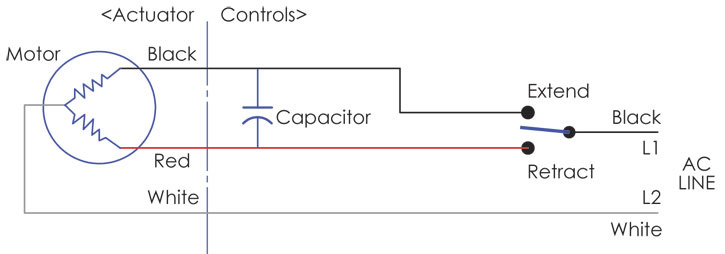

Note: For all AC motors, a capacitor is required. The capacitor can be supplied the customer or Duff-Norton |
||||||||||
