HMPD Series w/Limit Switch - 250 lbs

HMPD Series with Limit Switch Industrial Linear Actuator

HMPD Series Industrial Linear Actuator with Limit Switch

VOLTAGE: 12 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 3 to 18 in (76 to 457 mm)
SPEED: 1 to 2 in/s (25 to 50 mm/s)
TEMPERATURE RANGE: 25ºF to 120ºF (-4ºC to 50ºC)
ENVIRONMENTAL RATING: IP50 Protection (IP52 optional)

Free Application Analysis

Catalogs

O&M Manual

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

FEATURES and BENEFITS:
Heavy duty design for long life in tough applications
Aluminum housing and outer tube
Steel translating tube - zinc chromate plated
Double clevis mounting
Spring brake
Internal adjustable limit switches
Automatic reset thermal overload motor protection
OPTIONS:
Weather resistant sealant - IP52
Bellows boot
Potentiometer feedback

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[O&M Manual] HMPD w/Limit Switch VAC O&M Manual [O&M Manual] HMPD w/Limit Switch VDC O&M Manual [Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] HMPD w/Limit Switch Product Sheet [Product Sheet] HMPD w/Limit Switch Specs and Part Numbers

Drawings & Diagrams

[Dimension Input Drawing] HMPD w/Limit Switch Dimensional Drawing

Drawings & Diagrams

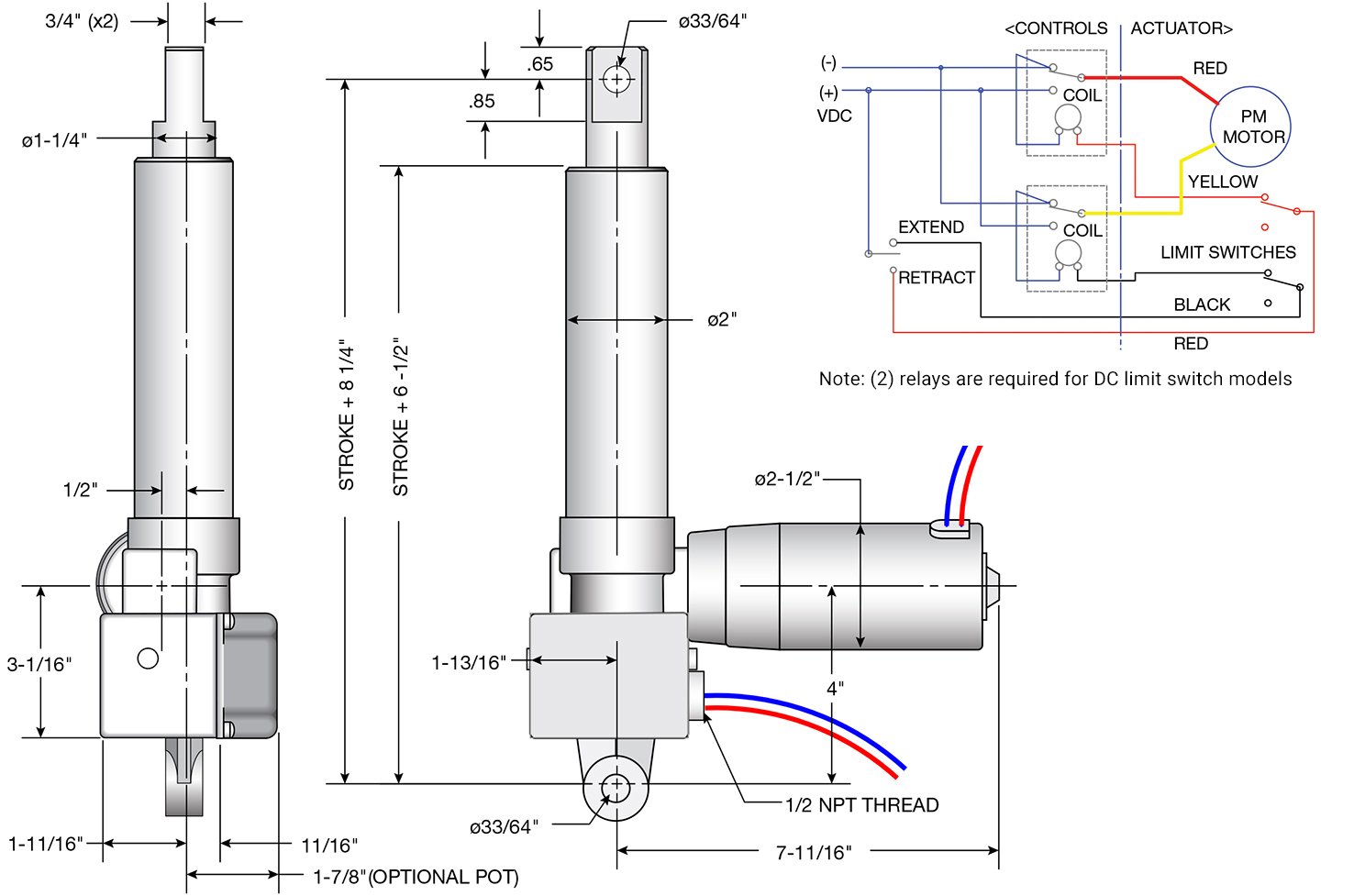

HMPD with Limit Switch Series Dimensions
