HMPD Series w/Clutch - 250 lbs

HMPD-C Series Industrial Linear Actuator

HMPD Series with Clutch Industrial Linear Actuator

VOLTAGE: 12 or 24 VDC
SCREW TYPE: Acme Screw
STANDARD STROKE: 3 to 18 in (76 to 457 mm)
SPEED: 1 to 2 in/s (25 to 50 mm/s)
TEMPERATURE RANGE: 25F to 120F (-4C to 50C)
ENVIRONMENTAL RATING: IP50 Protection Standard

Free Application Analysis

Catalogs

Product Sheet

Browse All Documents

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

FEATURES and BENEFITS:
Heavy duty design for long life in tough applications
Aluminum housing and outer tube
Steel translating tube - zinc chromate plated
Double clevis mounting
Patented spring brake
Load limiting friction disc clutch
Automatic reset thermal overload motor protection
OPTIONS:
Weather resistant sealant - IP52
Bellows boot
90 degree housing clevis mounting
Threaded end

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide Catalog [Brochure] Duff-Norton Capabilities Brochure S1

Manuals & Supplements

[Technical Bulletin] Linear Actuator Quick Reference Guide

Product & Data Sheets

[Product Sheet] HMPB w/Clutch Product Sheet [Product Sheet] HMPD w/Clutch Specs and Part Numbers

Drawings & Diagrams

[Dimension Input Drawing] HMPD w/Clutch Dimensional Drawing

Product Diagrams

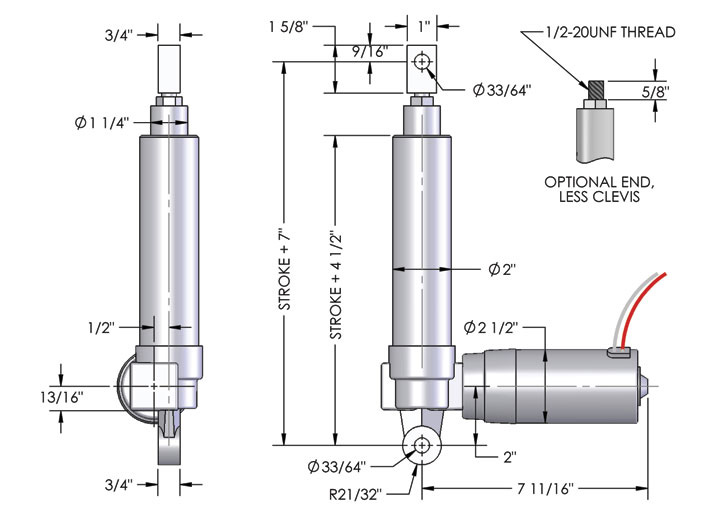

HMPD Series with Clutch Dimensions
