CMLA-B Series - 1,000 Lbs

CMLA-C Series Industrial Linear Actuators

The CMLA-B Series 1000 lb. capacity, Ball screw linear actuator with IP66S protection rating and hardened gears, screws, and lifting nuts is a robust and reliable device designed for demanding industrial applications requiring accurate linear motion and high load capacity. The use of ball bearings minimizes friction, leading to smoother operation and higher energy efficiency compared to traditional lead screws.

Free Application Analysis

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

Multiple Capacity Ratings
Four (4) available capacity ratings enable usage in a variety of applications
Sealed Bearings and High Quality Lubricants
Eliminates the need for periodic maintenance
Precision Ball Screw Option
Offers unmatched load speeds
Hardened Gears, Screws and Lifting Nuts
Provide an enhanced service life that surpasses many competitive offerings
Overload Prevention
Safety clutch aids in the prevention of damage due to accidental overload conditions
Environmental Protection
IP66S protection rating enables application in the harshest environmental conditions, including those where washdown is required

Specifications

CMLA B Series 1000 lb Product Specifications
Capacitor Model	Motor	Max. Dynamic Load	Max. Static Load	Screw	Gear	Motor Power	Amperage	Lifting Speed	Duty Cycle	Capacitor Rating
#	Type	(lbs) N	(lbs) N	Type	Ratio	Volts	Amps	(in/s) mm/s	(in/hr) m/hr	mdf
SK6405-7-15	AC	(1000) 4500	(1500) 6672	Trapezoid	14.2	115	7	(0.56) 14.2	(360) 9.1	50
192002120	AC	(1000) 4500	(1500) 6672	Trapezoid	14.2	230	3.4	(0.56) 14.2	(360) 9.1	12.5
SK6405-7-15	AC	(1000) 4500	(1500) 6672	Ball	8.1	115	7	(1.12) 28.5	(600) 15.2	50
192002120	AC	(1000) 4500	(1500) 6672	Ball	8.1	230	3.4	(1.12) 28.5	(600) 15.2	12.5
SK6405-7-15	AC	(250)§ 1112	(1500) 6672	Ball	2.1	115	7	(4.3) 109.2	(2300) 58.5	50
192002120	AC	(250)§ 1112	(1500) 6672	Ball	2.1	230	3.4	(4.3) 109.2	(2300) 58.5	12.5
§Quad Speed - Lower ratio reduces rated load to 250 lbs. No clutch Notes: 1. The correct capacitor mfd should be used for each model or the cylinder will not perform as rated. 2. Order Hard Start Kit 192036494 for applications where high starting torque is required (low temperature, high starting load)

Documents

Brochures & Catalogs

[Catalogs] Linear Actuator Design Guide

Product & Data Sheets

[Product Sheet] CMLA-B Product Sheet [Product Sheet] CMLA-B Specs and Part Numbers

Drawings & Diagrams

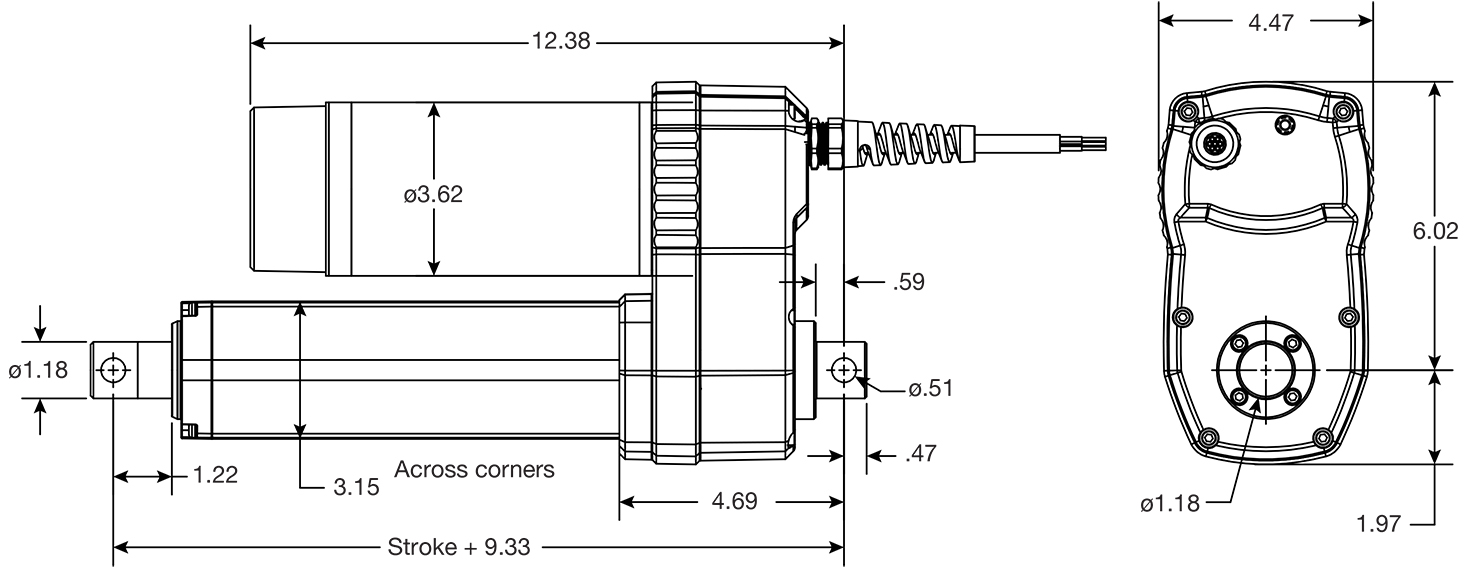

[Dimension Input Drawing] CMLA-B Dimensional Drawing

CMLA-B Series - 1,000 Lbs
