Single Phase Jog Control System

Duff-Norton offers single phase jogging control panels that meet a wide variety of single phase voltages. All of our control panels come standard with short circuit protection devices as well as adjustable motor overload protection.

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features and Benefits

  • NEMA type 12, wall mount, enclosure
  • Enclosure door mounted, main disconnect switch
  • LED, POWER ON indicator
  • Illuminated when pressed, LED, emergency stop pushbutton
  • Momentary EXTEND pushbutton
  • Momentary RETRACT pushbutton
  • Momentary STOP pushbutton (maintained single phase Jog controls only)
  • Labeled terminal block for field connections
  • Short circuit protection for both control and motor voltage
  • Extend/retract, mechanically and electrically interlocked, motor contactors
  • Main line contactor
  • Adjustable motor overload



Optional Features:

  • Illuminated pushbuttons
  • LED OVERLOAD indicator
  • Pendant controls
  • UL or cUL certification
  • Stack lights, siren, alarms
  • Shafted, interlocked, main disconnect switch
  • NEMA type 4/4X enclosures
  • Hazardous location enclosures

FEATURES & BENEFITS:

  • NEMA Type 12 wall mount enclosure
  • Enclosure door mounted main disconnect switch
  • LED, POWER ON indicator
  • LED, Emergency Stop pushbutton illuminated when pressed
  • Momentary EXTEND pushbutton
  • Momentary RETRACT pushbutton
  • Momentary STOP pushbutton (maintained single phase jog controls only)
  • Labeled terminal block for field connections
  • Short circuit protection for both control and motor voltage
  • Extend/retract mechanically and electrically interlocked motor contactors
  • Main line contactor
  • Adjustable motor overload

Specifications

Single Phase Jog Controls Specifications

Motor Size Voltage Height Width Depth Enclosure Mounting
Up to 1.5HP 110/115/120 VAC/1 PH/50/60 Hz
220/230/240 VAC/1 PH/50/60 Hz		 16 Inches 14 Inches 6 Inches Wall Mount

NOTE: Dimensions are the same for Momentary or Maintained controls. Dimensions shown are for standard jog controls with a single electric motor.

Single Phase Jog System Control Methods

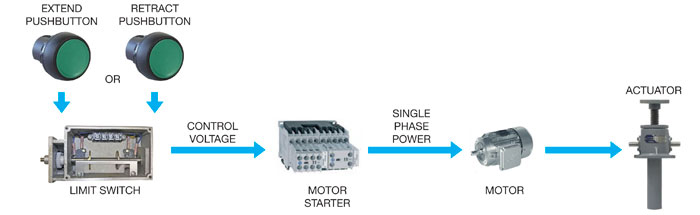

Method 1 - Single Phase Momentary Jog Controls Diagram



  • As the motor turns the actuator the feedback device output changes.
  • The controller reads the output from the feedback devices and displays the actuator position on the HMI
  • HMIs can display positions of multiple devices on one screen

  • Controllers can accept 4 – 20 mA, 0 – 10 VDC, and pulse type inputs.
  • Common feedback devices are linear sensors, potentiometers, and incremental encoders

Method 2 - Single Phase Maintained Jog Controls Diagram



  • As the motor turns the actuator the feedback device output changes.
  • The panel meter reads the output from the feedback device and displays the position of the actuator

  • Panel meters can accept 4 – 20 mA, 0 – 10 VDC, and pulse type inputs.
  • Panel meters come in AC or DC powered models.
  • Each feedback device requires its own panel meter
