Three Phase Jog Control System

Three Phase Jog Controls are designed for a wide range of standard three phase electric motors. And they are designed to operate single or multiple electric motors.

Need Assistance?

Not sure if this is the right product for your application, or need a custom solution? Contact us today for help from an expert.

Features & Benefits

  • Standard Three Phase Jog Controls
    Can be configured to jog motors at 208/220/230/240/400/460/480 and 575 VAC at either 50 or 60Hz.
  • Two Standard Methods for Jogging Three Phase Motors:

Momentary Jog - Pushbutton must be pressed and held to run motor. Releasing pushbutton will stop motor
Maintained Jog - Pushbutton must be pressed and released to run motor. Stop pushbutton must be pressed to stop motor.

  • Flexibility
    Allows greater flexibility for motion applications.
  • Multiple Processes
    Can be achieved with the same equipment by adjusting speeds.
  • Cost Efficiency
    Eliminates the need for additional equipment for fast or slow processes
  • Increaces Equipment Durablity
    • Eliminates equipment hard starts and stops
    • Prolongs equipment life

Optional Features

  • Illuminated pushbuttons
  • LED OVERLOAD indicator
  • Pendant controls
  • UL or cUL certification
  • Stack lights, siren, and alarms
  • NEMA type 4/4X enclosures
  • Hazardous location enclosures

Specifications

Three Phase Jog Control Specifications

Motor Size Voltage Height Width Depth Enclosure Mounting
Up to 10 HP 400 VAC/3 PH/60 Hz 20 Inches 16 Inches 6 Inches Wall Mount

NOTE: Dimensions are the same for Momentary or Maintained controls. Dimensions shown are for standard jog controls with a single electric motor.

Three Phase Jog System Control Methods

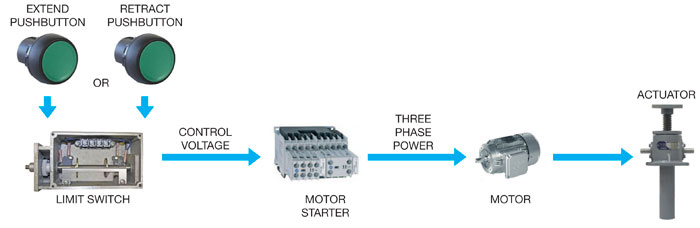

Method 1 - Momentary Jog Controls



  • Press and hold the extend or retract pushbutton.
  • Control voltage is applied to the limit switch.
  • Control voltage from the limit switch energizes the motor starter.
  • The motor starter supplies three phase power to the motor. The motor will run clockwise or counterclockwise to extend or retract the actuator.

  • Releasing the extend or retract pushbutton de-energizes the motor starter stopping the motor and actuator.
  • If the normally closed limit switch is activated the motor starter will be de-energized stopping the motor and actuator.

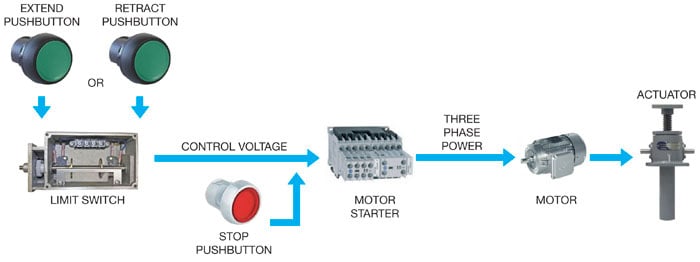

Method 2 - Maintained Jog Controls



  • Press and release the extend or retract pushbutton.
  • Control voltage is applied to the limit switch.
  • Control voltage from the limit switch passes through the stop pushbutton and energizes the motor starter.
  • The motor starter supplies three phase power to the motor. The motor will run clockwise or counterclockwise to extend or retract the actuator.

  • Pressing the stop pushbutton de-energizes the motor starter stopping the motor and actuator.
  • If the normally closed limit switch is activated the motor starter will be de-energized stopping the motor and actuator.
